Fixed-Wing Series UAV

GTHM-430-67
Fixed-Wing Series UAV
GHM-430 UAV is a test platform developed to meet the small closed-loop testing requirements of the fully automatic carrier landing system. It forms an aircraft-ship closed-loop control loop with the shipboard system, which can simulate the fully automatic landing process of shipboard aircraft, in order to achieve the integrated verification of key technologies for fully automatic landing guidance, and test the functions and performance of the shipboard system.
INQUIRY NOW

Characteristic Advantages

  • As the aerial test node of a small closed-loop test in the shipboard system

  • GHM-430 UAV is equipped with sea-based airborne test equipment to complete take-off and landing at the land-based airport

  • It ship contact and go-around on the offshore moving base platform

  • It cooperate to complete the demonstration and verification of the fully automatic landing technology

Performance Parameter

  • Fuselage length: 5.18 m

  • Wing span: 6.00 m

  • Design take-off weight: 430 kg

  • Wind loading.png

    Payload: 26 kg

  • Practical Vertical Takeoff Altitude 1.png

    Cruising speed: 220~240 km/h

  • service ceiling.png

    Cruising altitude: 500~1000 m

  • Endurance: ≥ 0.9 h

  • Data link scope.png

    Maximum range: 283 Km


Application Scenarios

The UAV and the shipboard system form an aircraft- ship closed-loop control loop to simulate the fully automatic landing process of shipboard aircraft, achieve the integrated verification of key technologies for fully automatic landing guidance, and test the functions and performance of the shipboard system. The UAV is used as the aerial test node of a small closed-loop test in the shipboard system. Equipped with sea-based airborne test equipment, the UAV can complete such test missions as takeoff and landing on the land-based airport, and ship contact escape and go-round on the offshore moving base platform, and cooperate to complete the demonstration and verification of the fully automatic landing technology.

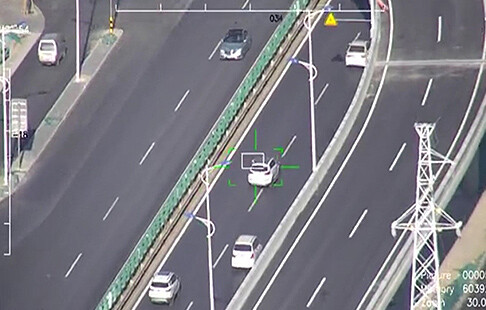

  • Range inspection
    Range inspection
  • Regional inspection
    Regional inspection
  • Emergency communication
    Emergency communication
  • Emergency lighting
    Emergency lighting
  • Transport delivery
    Transport delivery
