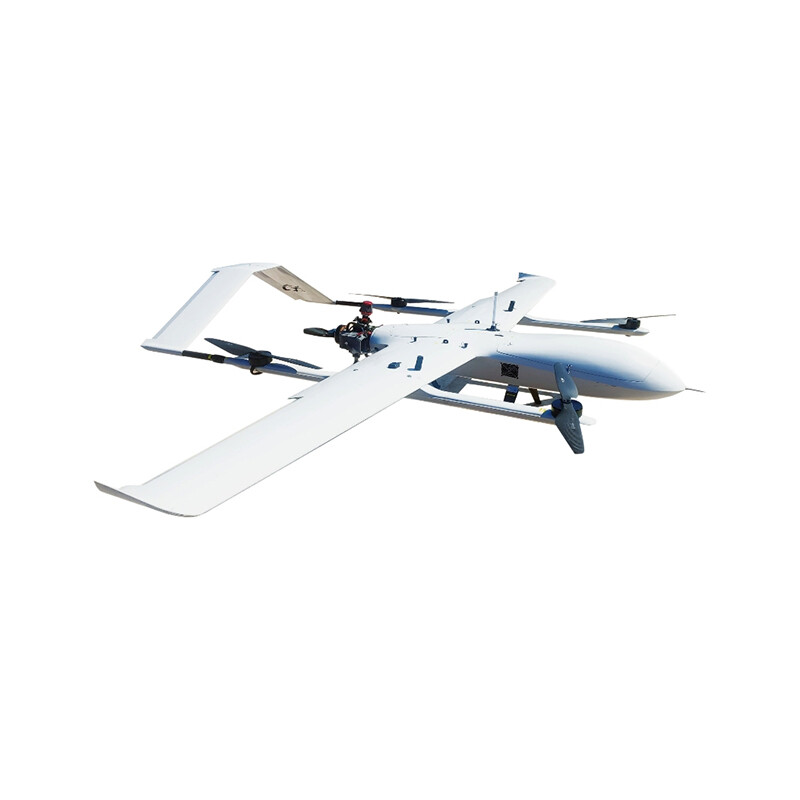

VTOL Composite Wing UAV

FTCM-50-40
VTOL Composite Wing UAV
The FCM-50 UAV is a medium-sized oil-powered long-endurance composite-wing VTOL UAV. It adopts the overall layout of composite wing that combines fixed wing with quad-rotor, and solves the problem of vertical takeoff and landing of fixed-wing UAV in a simple and reliable way.
INQUIRY NOW

Characteristic Advantages

  • FCM-50 UAV combines the characteristics of long endurance, high speed and long distance of the fixed-wing UAV with the vertical takeoff and landing function of the rotary-wing UAV.

  • The VTOL mode greatly enhances the environmental adaptability of the UAV platform.

  • The airframe is made from carbon fiber composite materials and hot press tank integrated molding process, achieving the advantages of high strength, high rigidity and light weight.

Performance Parameter

  • Maximum takeoff weight.png

    Fuselage length 2.5m

  • payload.png

    Wing span 3.8m

  • cruising speed.png

    Max take-off weight 50kg

  • endurance.png

    Payload 15kg

  • Cruising speed 40m/s

  • Practical Vertical Takeoff Altitude 1.png

    Flight ceiling 4000m

  • Practical Vertical Takeoff Altitude.png

    Endurance 8h

  • Task radius.png

    Max range 800km

  • length.png

    Max fuel capacity 12L


Application Scenarios

It is equipped with fully autonomous vertical takeoff and landing function, reducing the requirements for takeoff and landing sites. Compared to many rotary-wing UAVs, it has advantages such as long endurance and large operating radius, and can carry visible light/infrared and other payloads, which make it suitable for performing missions such as reconnaissance and surveillance, border patrols, and emergency inspections at scenarios of border lines, coastlines, power lines, oil pipelines, and long-distance highways.
  • Marine protection
    Marine protection
  • Aerial photography
    Aerial photography
  • Emergency rescue
    Emergency rescue
  • Agriculture, Forestry and Plant Protection
    Agriculture, Forestry and Plant Protection
  • Remote sensing/surveying
    Remote sensing/surveying
  • Patrol inspection
    Patrol inspection
